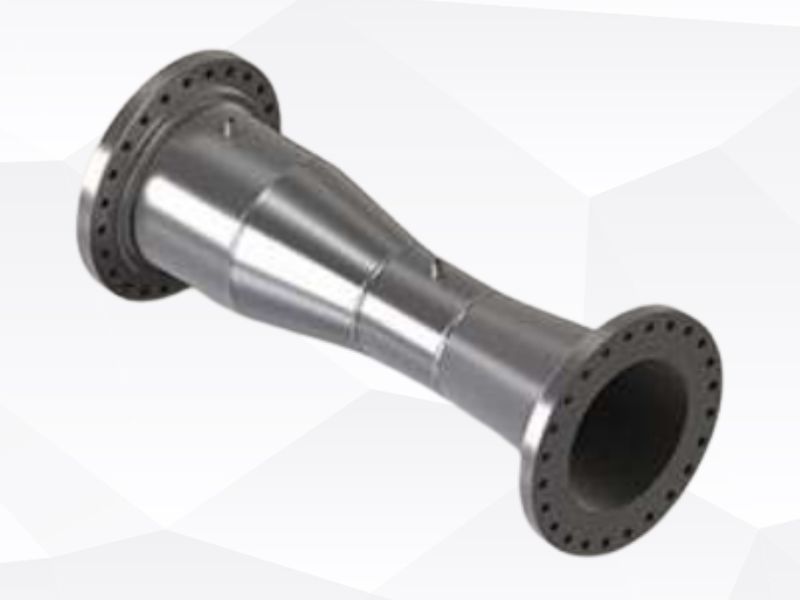

Venturi Tubes

A Venturi Tube has a conical convergent entry followed by a cylindrical throat & conical divergent outlet. It substantially reduces permanent pressure loss. The types are made according to the manufacturing method of the internal surface of the entrance cone & profile at the intersection of the entrance cone & throat.

Technical Specification

  • Line Size
    Type A – 100 mm – 800 mm (4”- 32”)
    Type B – 50 mm – 250 mm (2”- 10”)
    Type C – 200 mm – 1200 mm (8” – 48”)
  • Types
    Type A – Cast Convergent Section
    Type B – Machined Convergent Section
    Type C – Rough Welded Sheet Iron Convergent Section
